Industrial Full Automatic Saponification Machine Line for Soap Production

High-Performance Industrial Saponification Machine for Continuous Soap Production

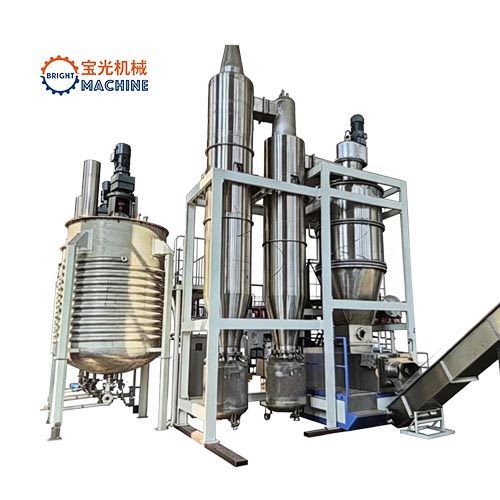

The Full Automatic Saponification Machine Line from TJ Bright Machine provides a comprehensive, end-to-end solution for modern soap manufacturing plants. Designed to convert raw oils, fats, and liquid caustic soda (NaOH) into high-quality soap, this industrial-grade saponification machine combines precision chemical reaction control with automated downstream finishing machinery to deliver consistent, market-ready soap bars.

Complete Saponification Line Architecture

Our automated system seamlessly integrates front-end reaction unit processes with heavy-duty finishing and packaging equipment to maintain continuous production with minimal manual intervention.

1. Front-End Saponification & Base Preparation Unit

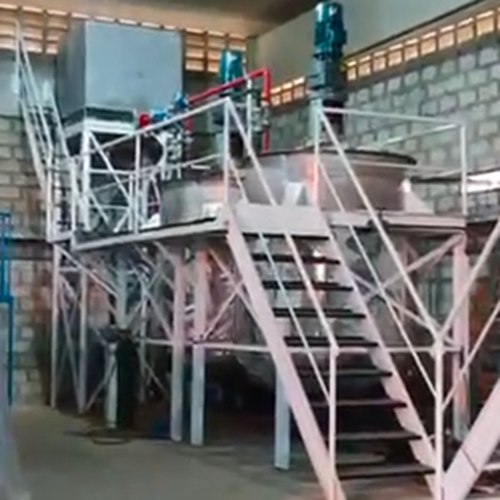

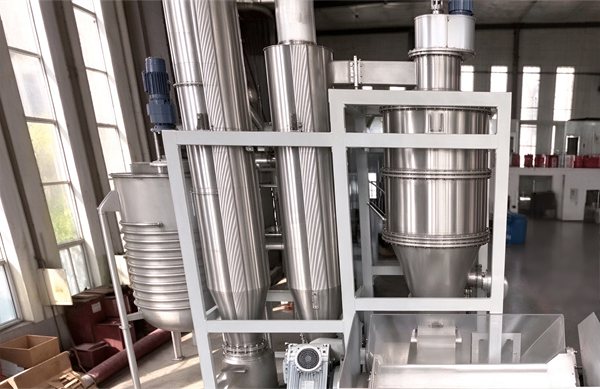

• Reaction Vessels (Saponification Tanks): Heavy-duty jacketed reaction tanks equipped with high-shear agitators and precise temperature control mechanisms to guarantee complete saponification of raw oils and fats with liquid caustic soda.

• Heavy-Duty Soap Liquid Pump: High-viscosity liquid pumps designed to transfer hot soap mass efficiently to the drying section without thermal loss or clogging.

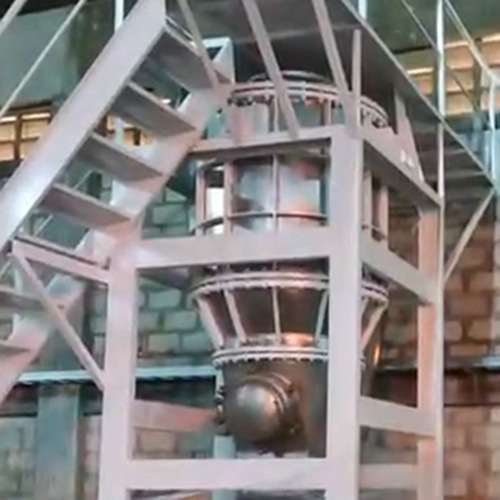

• Vacuum Drying Chamber & Cyclone Separator: Advanced vacuum flash drying technology rapidly reduces moisture content, ensuring uniform soap concentration and superior base purity.

• Noodle Plodder (Soap Pelletizing Machine): Converts dried soap mass into clean, uniform soap noodles/pellets, ready for downstream blending and refining.

2. Intermediate Refining & Extrusion Assembly

• Industrial Soap Mixer: Blends soap noodles homogeneously with additives, pigments, fragrance, and functional skin-care ingredients.

• Refiner & Triple Roll Mill: Heavy-duty water-cooled chill rolls provide intensive shear stress to refine the soap texture, eliminate grittiness, and create a smooth, dense compound structure.

• Duplex Vacuum Plodder (Extruder): Integrated with a precision chilled water unit and high-vacuum pump system to extrude dense, bubble-free continuous soap billets under negative pressure.

3. Downstream Cutting, Stamping & Packaging System

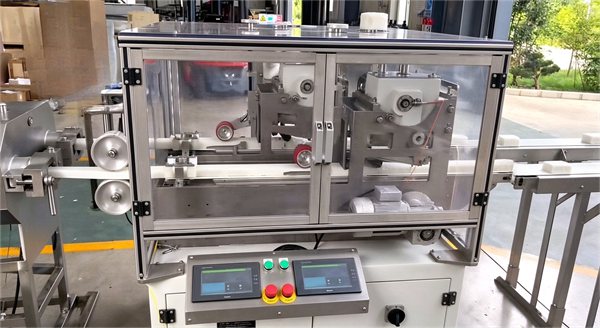

• Automatic Bar Cutter: Precision rotary cutter that sections continuous extruded billets into uniform soap blocks with minimal kerf waste.

• Multi-Mold Soap Stamping Machine: Coupled with an industrial chiller unit, vacuum pump, and air compressor for high-speed, high-pressure embossing of complex logos and shapes without mold sticking.

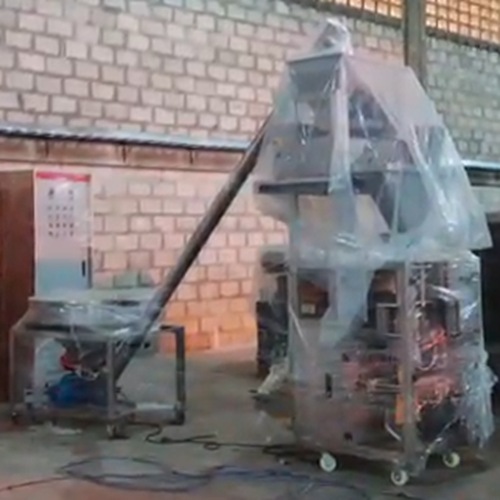

• Automated Packaging Machine: High-speed flow wrapping or carton packing system to deliver retail-ready packaged soap bars efficiently.

Key Advantages & Technical Highlights

• Full Process Automation: Reduced labor overhead and enhanced operator safety through automated thermal and speed control across all stages.

• Superior Soap Quality: Multi-stage vacuum degassing and precision triple roll milling ensure dense, long-lasting soap bars with fine texture.

• Energy-Efficient Operation: Optimally insulated reaction vessels and closed-loop cooling systems maximize heat efficiency and reduce utility costs.

• Flexible Capacity & Customization: Adaptable for various fatty acid profiles, translucent soaps, laundry soaps, and premium toilet soap formulations.

Target Applications

Ideal for medium to large-scale commercial soap manufacturers producing toilet soap, laundry bar soap, hotel guest soaps, and specialized medicated soap lines.
