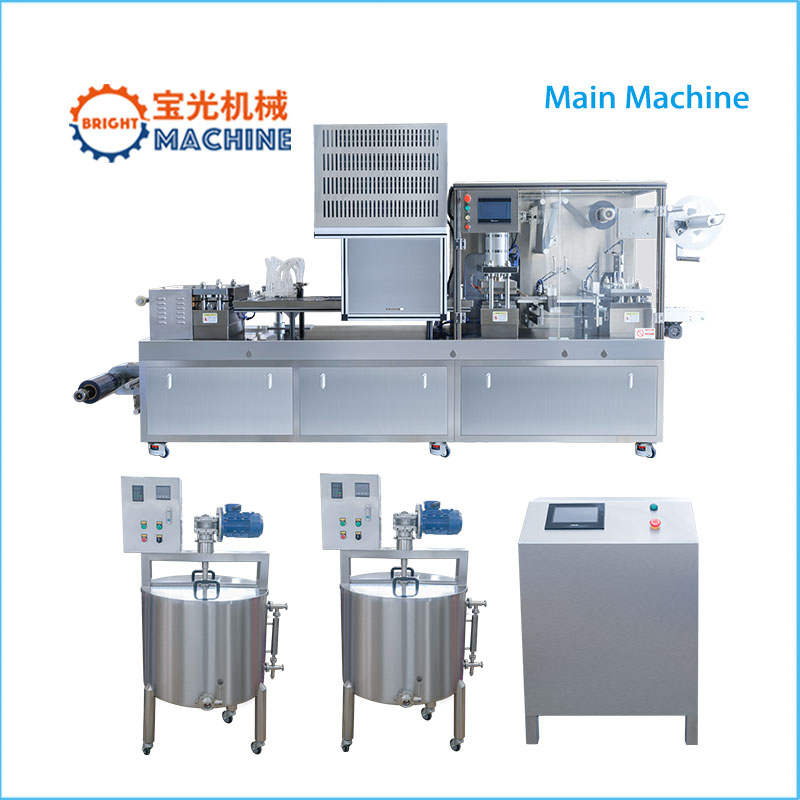

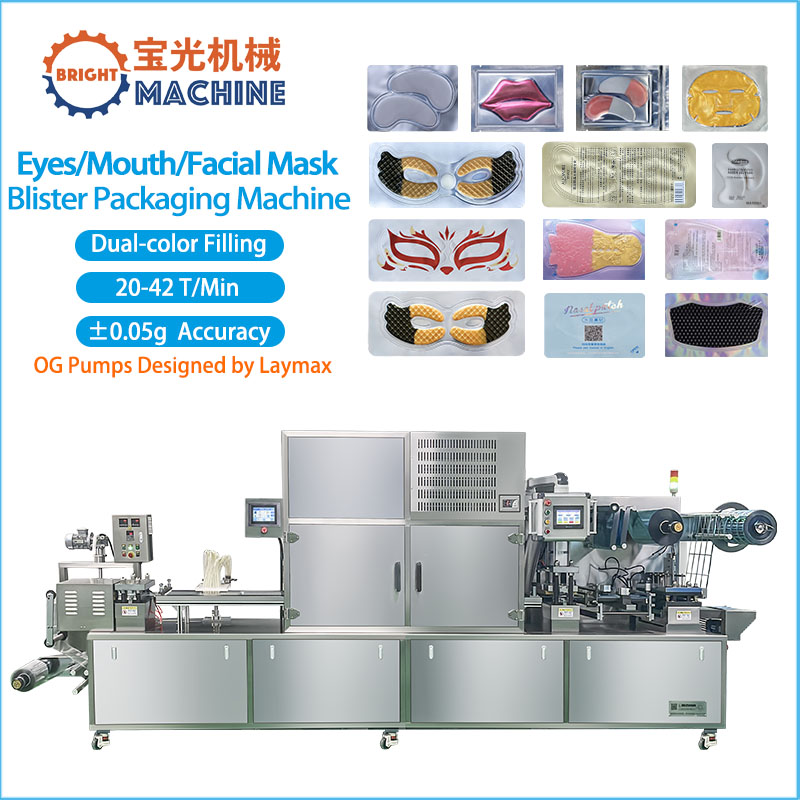

·1. This fully automated eye mask blister machine can achieve single-color, double-color, and multi-color filling
2. Automatic cursor error compensation system (can achieve double alignment)
3. The cutter can be compatible with cutting PET and PVC. PET material is environmentally friendly and cheaper. Using PET sheets saves 1 cent. One machine produces 20 million pieces per year, which can save 200,000 RMB (about 28,000USD/year)
4. Our factory independently develops the filling pump, and the filling accuracy is controlled to ±0.1g! It saves you a lot of raw materials

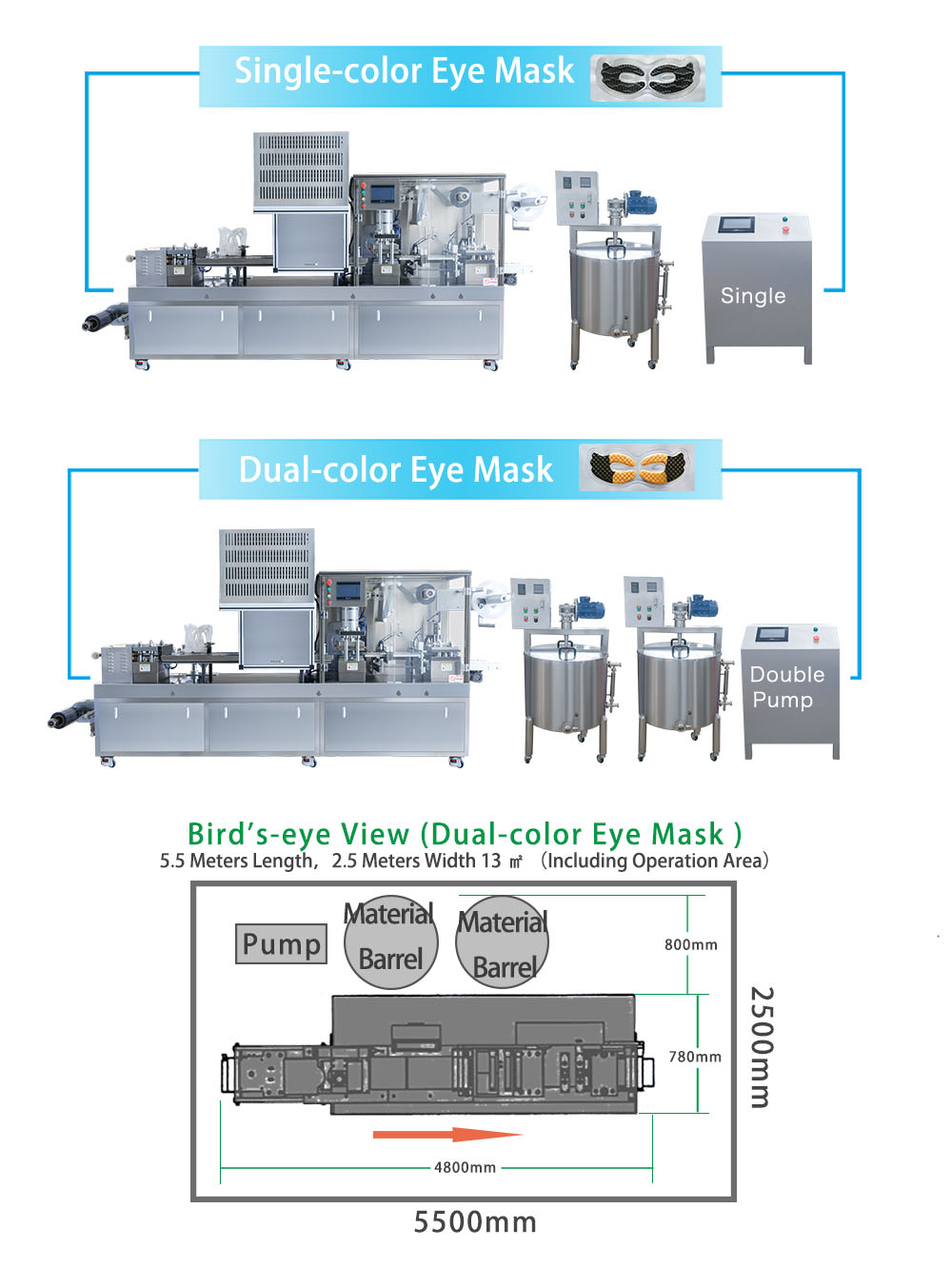

5. The machine is short, the alignment error is small, and it saves space (4.8 meters long)
6. Minus 25° industrial condensation system (fast solidification, short machine)

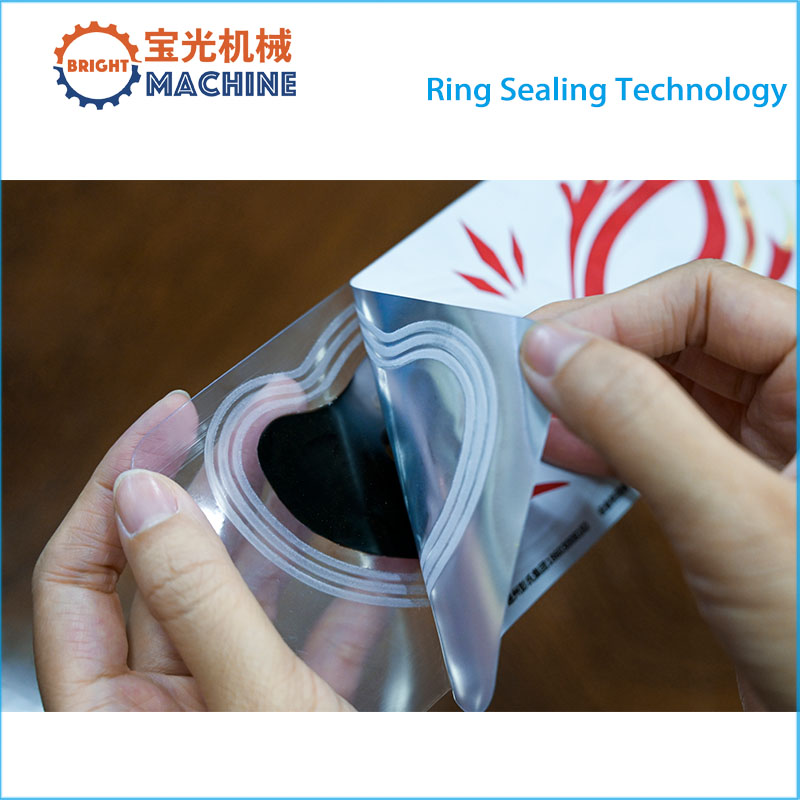

7. Adopting ring sealing technology
8. This eye mask blister machine can achieve high-speed operation: 20-40 times per minute! 4000 pieces/hour
9. We promise 0ne year warranty and worry-free after-sales!
Model |
Eye Mask Blister Filling& Packaging Machine
|
Delivery Period |
28 days |
Filling Material |
Dual-color Gel |
Indexing Method |
Pneumatic Clamp |
Pumps |
Designed by our factory |
Filling Accuracy |
≤±0.1g |
Film Thickness |
0.1-0.7mm |
Forming Depth |
32mm |

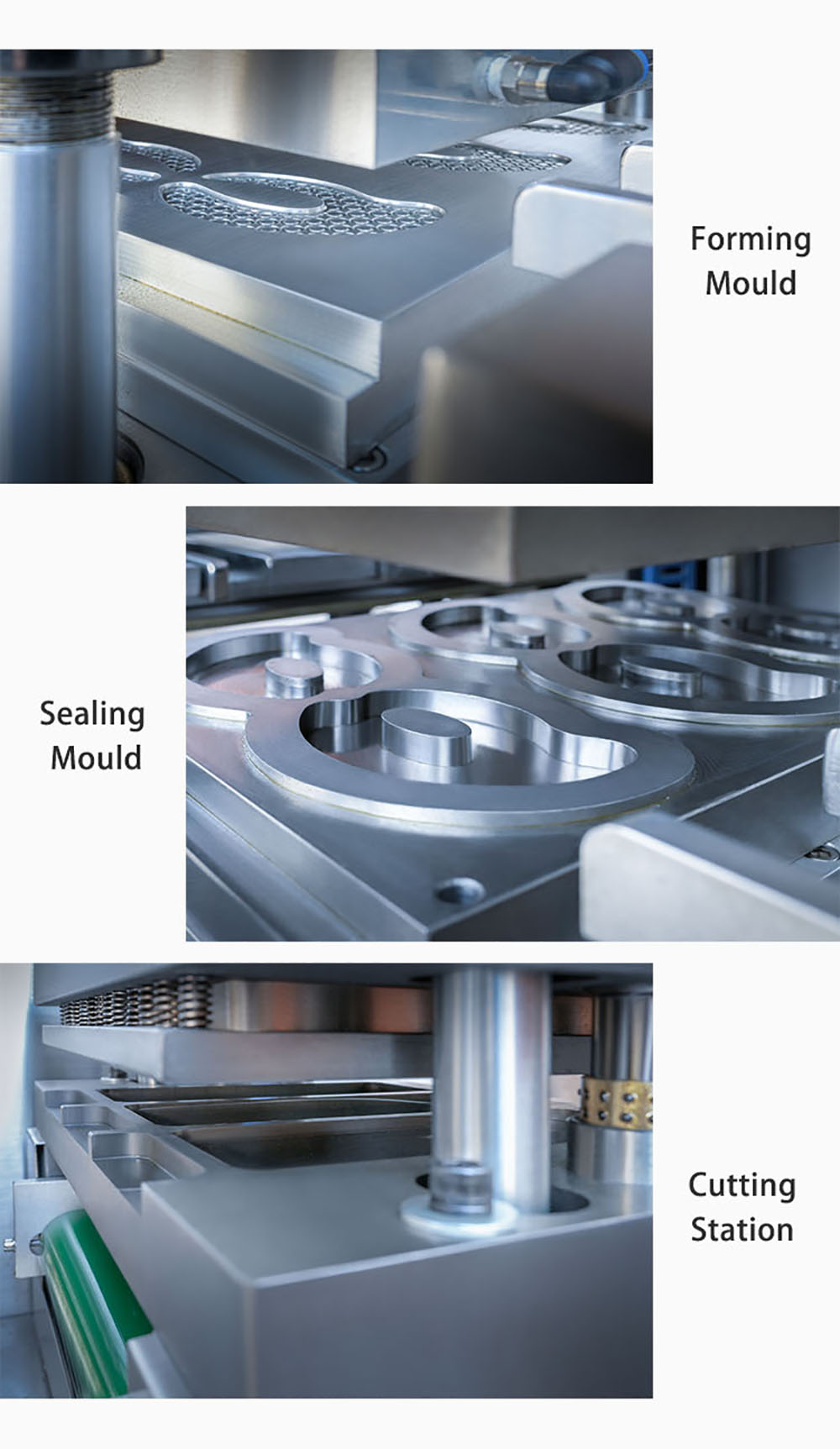

Mold |
Facial -1pcs/t eye/mouth mask -3 PCS/t and 6pcs/t |
Speed |
over 22T/Min |
Machine Capacity |
As products,1pcs/t- 1320pcs ,3pcs/t-about 4000pcs/h, 6psc/t-12000pcs/h |
Sealing Method |
2.5mm Circle Sealing |

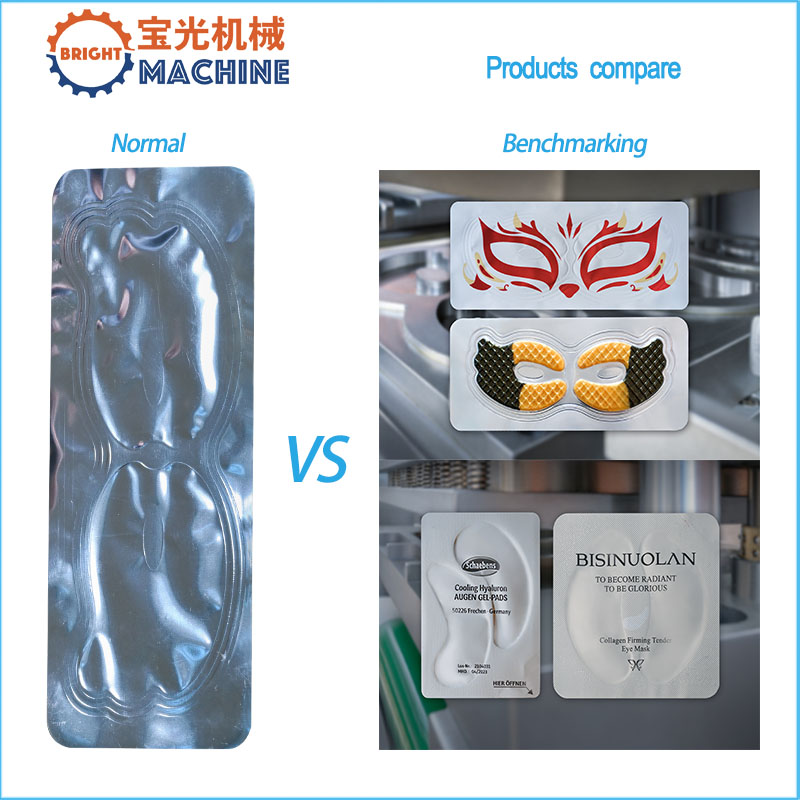

Benchmarking |
Upper Film can be Printed Logo |
Traction Length |
220mm |
Chiller |
-25°C Industry Chiller |
Fixed Device |
Air Shaft |
Main Motor |
Xdlmotor |
PLC |
Siemens |
Coder |
Omron |
Touch Screen |
Weinview |
VFD |
Schneider |
