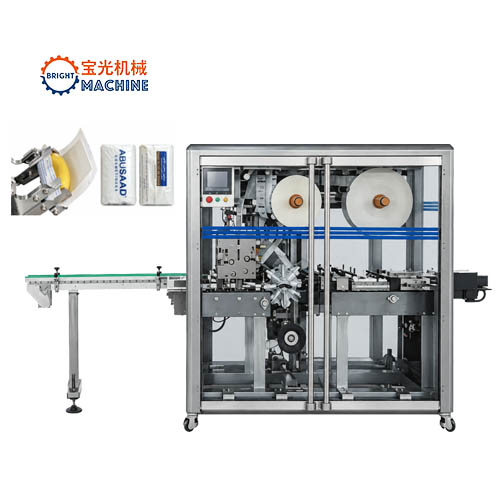

Automatic High-Speed Double-Layer Soap Packaging Machine STB-200

Automatic High-Speed Double-Layer Soap Packaging Machine STB-200

Product Attributes :

The STB-200 is an advanced double-layer soap packaging machine designed for fast, high-precision 3D wrapping. Operating at 40 to 70 packs per minute, this automatic soap packaging machine provides tight, elegant protection for premium bar soaps, improving production efficiency, reducing labor costs, and boosting overall visual appeal.

Product Description

High-Performance Double-Layer Soap Packaging Machine (Model: STB-200)

Upgrade your bar soap production line with the STB-200, an industrial-grade soap packaging machine engineered for premium film wrapping and three-dimensional (3D) film packaging. Designed specifically for hotel soaps, beauty bars, laundry soaps, and customized cosmetic bars, this machine delivers sleek, professional wrapping while maintaining maximum efficiency and low operational expenditure.

Key Features & Technical Advantages

High Efficiency & Speed Performance Equipped with a responsive servo motor system, this automatic soap packaging machine operates at a reliable capacity of 40 to 70 packs per minute. Whether running a continuous high-volume factory line or batching artisanal soaps, the STB-200 maintains stable motion and tight seal consistency.

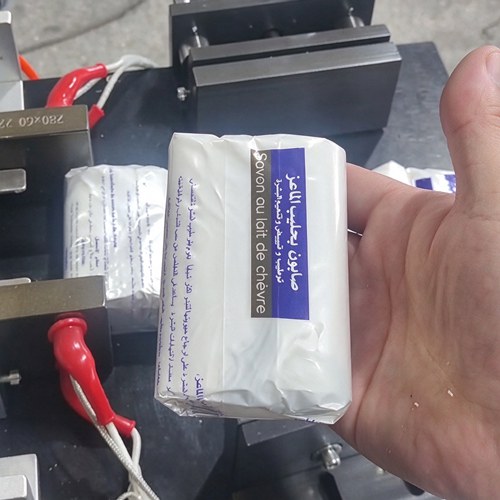

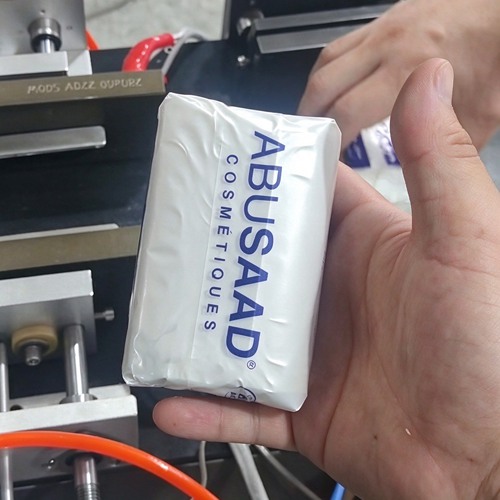

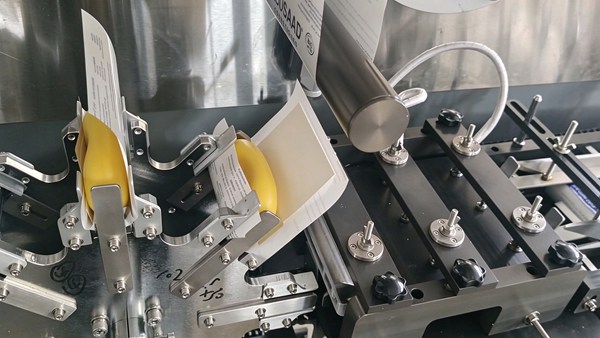

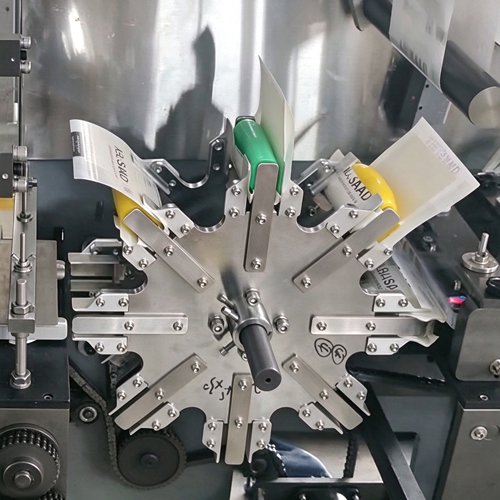

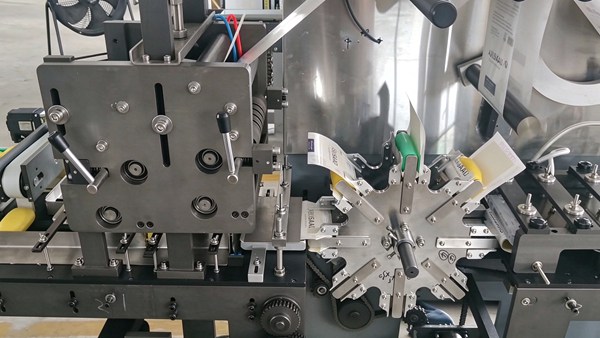

Versatile Double-Layer 3D Wrapping The double-layer design ensures robust outer film wrapping with smooth corner folds, giving your packaged soap products a sleek 3D aesthetic that stands out on retail shelves. It protects soaps against moisture, air exposure, and transport damage.
Flexible Size Range Flexibility The machine accommodates a wide variety of standard soap dimensions without requiring lengthy line shutdown for adjustments:
- Length (L): $40\text{ mm}$ to $150\text{ mm}$
- Width (W): $20\text{ mm}$ to $100\text{ mm}$
- Height (H): $15\text{ mm}$ to $50\text{ mm}$
- Dimensional Limits: $\text{Length} + \text{Height} \le 210\text{ mm}$ ; $\text{Width} + \text{Height} \le 140\text{ mm}$ (Maximum height capped at $50\text{ mm}$ ).

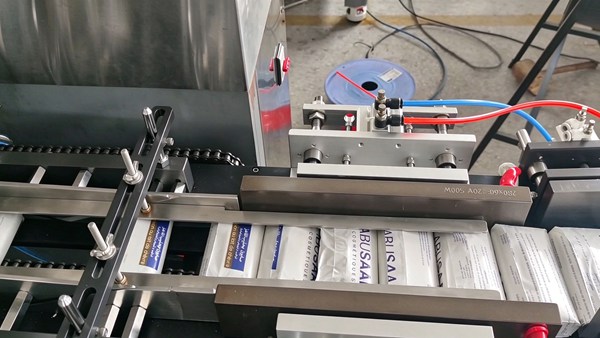

Precision Energy Management & Servo Drive Powered by a $2.6\text{ kW}$ servo motor and equipped with a $4.6\text{ kW}$ total heating system, the STB-200 provides fast heat response and precise digital thermal regulation, guaranteeing neat seal seams without burning or crinkling delicate thin films.
Heavy-Duty & Compact Industrial Design Built with a sturdy overall mass of $800\text{ kg}$ , the STB-200 offers vibration-free operation at top speeds. Its compact footprint ( $2300\text{ mm} \times 820\text{ mm} \times 1630\text{ mm}$ ) makes it ideal for seamless integration into existing conveyor systems and manufacturing plants.

Technical Specifications

Specification Parameter	Value / Detail
Model	STB-200
Machine Type	Double-Layer Soap 3D Packaging Machine
Production Efficiency	40 – 70 packs / min
Packaging Range (L × W × H)	$40\text{–}150\text{ mm} \times 20\text{–}100\text{ mm} \times 15\text{–}50\text{ mm}$
Max Dimension Constraints	$\text{L} + \text{H} \le 210\text{ mm}$ , $\text{W} + \text{H} \le 140\text{ mm}$ (Height≤ $\le 50\text{ mm}$ )
Power Supply	220V, 50Hz
Servo Motor Power	2.6kW
Total Heater Power	4.6kW
External Dimensions (L × W × H)	2300mm×820mm×1630mm
Net Weight	800kg

Why Choose the STB-200 Soap Packaging Machine?

In automated soap production, packaging quality directly affects brand perception. Choosing our STB-200 soap packaging machine gives your production facilities competitive advantages:

Lower Labor Expenses: Replaces manual wrapping with fast, fully automated film wrapping.
Enhanced Shelf Appeal: Neat, wrinkle-free 3D film edges increase the perceived market value of your soap bars.
Reliable Continuous Operation: Designed for long production runs with minimal maintenance downtime.
