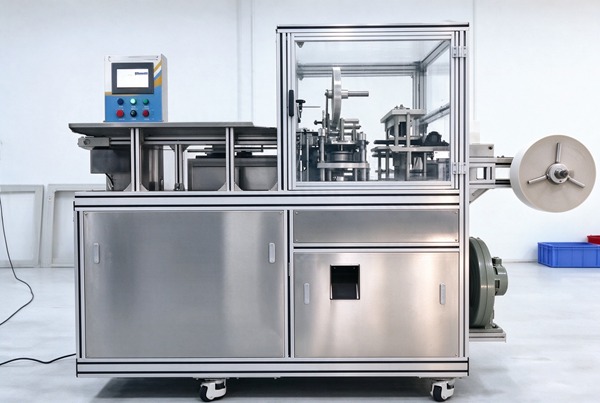

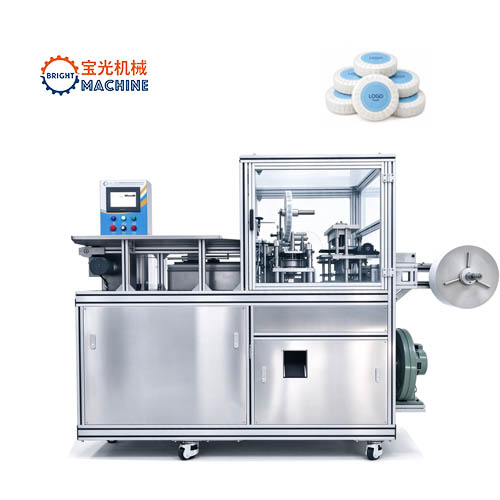

YN-660 Automatic Round Soap Wrapping Machine for Pleat Packaging

Premium Automatic Round Soap Wrapping Machine Solutions

In the competitive cosmetic and personal care manufacturing industry, packaging presentation is critical to brand identity and product appeal. The YN-660 Automatic Round Soap Wrapping Machine is engineered to meet the highest standard of pleat wrapping for round, circular, and hotel guest soaps. Combining advanced mechanical engineering, flexible material handling, and consistent labeling accuracy, this industrial soap wrapping machine delivers a flawless, premium finish to elevate your soap products in the global marketplace.

Key Features & Technical Advantages

1. High-Speed Efficiency & Smooth Operation Engineered for continuous industrial output, the YN-660 soap wrapping machine achieves an impressive packaging speed of 50 to 60 pieces per minute. It reduces manual labor costs while significantly boosting production efficiency. The balanced transmission system ensures ultra-smooth operation, low noise, and continuous operation with minimal downtime.

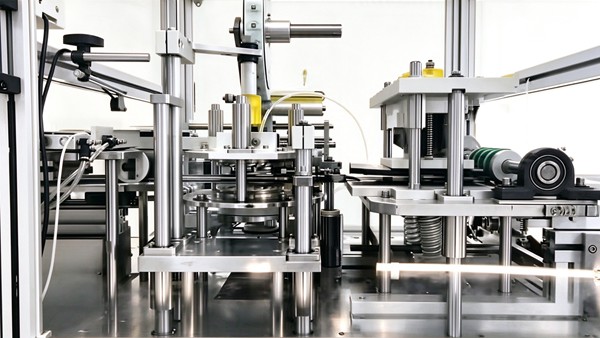

2. Precision Pleat Wrapping for Round Soaps Pleat wrapping requires tight control and uniform folds to achieve a clean appearance. The YN-660 specializes in handling circular soaps with diameters ranging from 35 mm to 65 mm and thicknesses between 8 mm and 35 mm. The machine neatly gathers the wrapping film around the edge of the soap bar, creating uniform, elegant radial pleats that are fixed tightly by an integrated top label application.

3. Broad Material Versatility Adaptability is essential for modern packaging plants. This soap wrapping machine supports a wide range of popular wrapping media, including pearlescent film, coated plastic paper, transparent cellophane, and heat-sealable films. It handles film rolls with widths from 85 mm to 140 mm, giving manufacturers the freedom to switch between budget-friendly films and luxurious textured paper without replacing major mechanical components.

4. Integrated Automatic Labeling A sleek pleat fold requires a precise sticker to seal the center fold cleanly. The YN-660 features an integrated automatic labeling unit compatible with round stickers or brand labels ranging from 20 mm to 40 mm in diameter. The labeling head applies stickers accurately to the center of each pleated soap, ensuring your brand logo is prominently and neatly displayed on every finished product.

5. Robust Industrial Construction & Custom Power Options Built with high-grade industrial materials and weighing 650 kg, the YN-660 features a stable structural frame designed to absorb vibrations during high-speed production. Operating at a standard power of 3 kW and requiring working air pressure of 0.5–0.8 MPa, the machine comes configured for standard 220V/50Hz power supply. Custom electrical configurations (e.g., 380V, 110V, 60Hz) can be fully tailored to meet your local factory power requirements worldwide.

Technical Specifications

Technical ParameterSpecificationModelYN-660Soap Dimension

Diameter: 35–65 mm, Thickness: 8–35 mm

Wrapping Speed

50–60 pcs/min

Working Air Pressure

0.5–0.8 MPa

Power Supply

220V / 50Hz (Custom voltages available)

Total Power

3 kW

Wrapping Materials

Pearlescent film, plastic paper, cellophane, etc.

Wrapping Film/Paper Width

85–140 mm

Label Dimension

Diameter: 20–40 mm

Machine Weight

650 kg

Overall Dimension (L×W×H)

2200 × 1000 × 1650 mm

Industrial Applications

The YN-660 soap wrapping machine is an essential asset across multiple manufacturing sectors:

• Hotel Guest Soap Packaging: Ideal for small-to-medium circular hotel soaps requiring clean, elegant pleat wrapping with custom hotel branding labels.

• Commercial Toilet Soap Production: Perfect for standard round toilet soaps, bath soaps, and beauty bars sold in retail markets.

• Artisanal & Specialty Soaps: Adds a high-end, professionally packaged look to handcrafted round cold-process or melt-and-pour soaps.

Why Choose the YN-660 Soap Wrapping Machine?

• User-Friendly Operation: Simplified controls reduce operator training time and allow quick adjustments during batch changes.

• Compact Footprint: Measuring 2200 mm × 1000 mm × 1650 mm, this soap wrapping machine fits seamlessly into existing soap production lines or compact workshop layouts.

• Consistent Quality Assurance: Every soap bar packaged by the YN-660 undergoes precise film tensioning, ensuring zero loose wraps or misaligned center labels.

• Low Maintenance Requirements: Premium internal components minimize mechanical wear, resulting in lower long-term maintenance costs and maximum equipment lifespan.

Upgrade your automated packaging line today with the YN-660 Round Soap Wrapping Machine. Contact our engineering team for custom voltage requests, factory layout integration, or a detailed quotation tailored to your production capacity!
