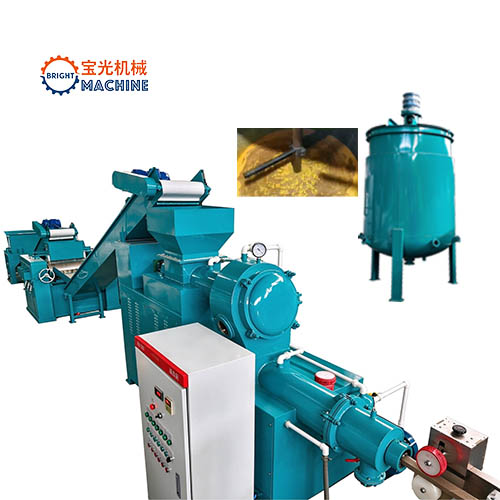

100-300kg/h Automatic Bar Soap Making Machine Laundry Soap Production Line

This commercial bar soap making machine is a comprehensive, efficient, and reliable solution designed for small-to-medium soap manufacturers aiming to produce premium laundry soap and toilet soap. Engineered to handle a capacity of 100-300 kg/h, this complete production line directly converts crude oil, fats, and caustic soda lye into high-grade finished soap bars with customizable fatty acid contents ranging from 40% to 80%.

Complete Saponification & Finishing Workflow

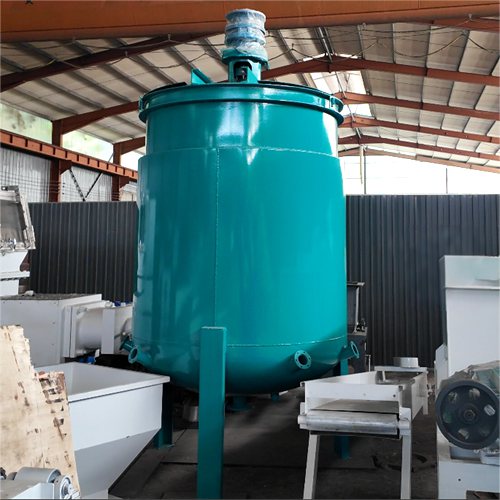

The manufacturing process begins in the saponification tank equipped with an automatic mixer, where oil and alkali solution are precisely blended and cooked to form liquid soap base. After natural cooling and drying, the solidified soap blocks are fed into the fully automatic finishing line. The line integrates several high-precision machines operating in perfect harmony:

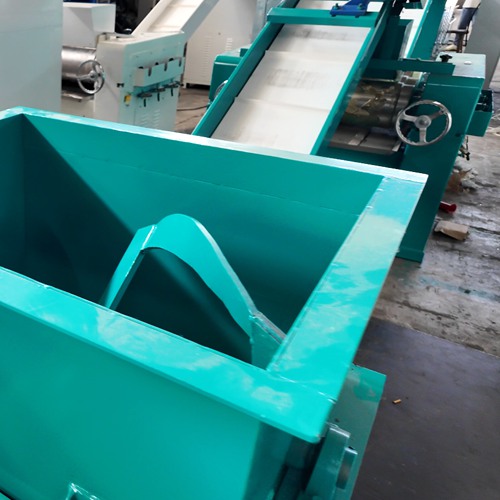

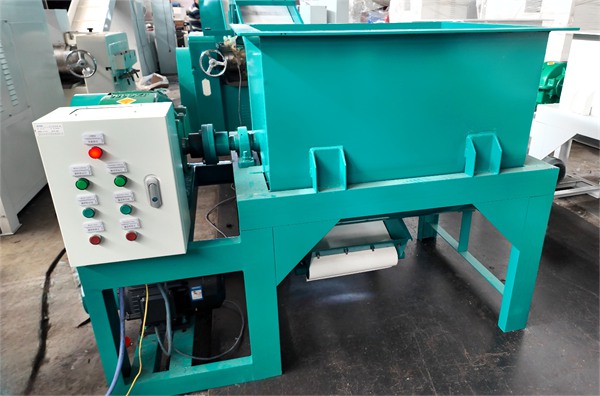

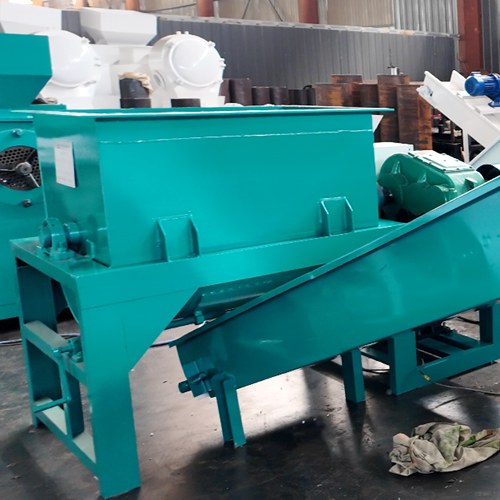

• Heavy-Duty Soap Mixer: Thoroughly mixes soap noodles, additives, perfume, and colorants.

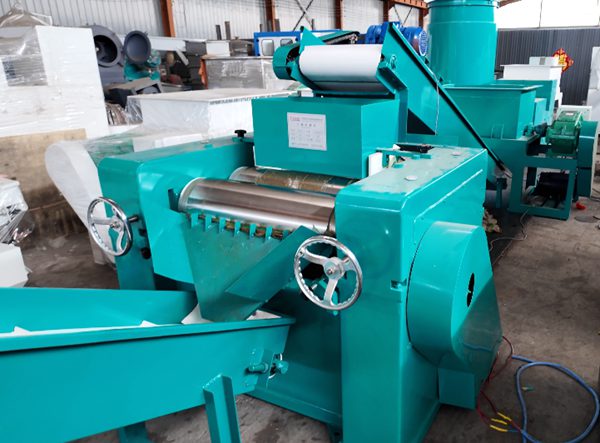

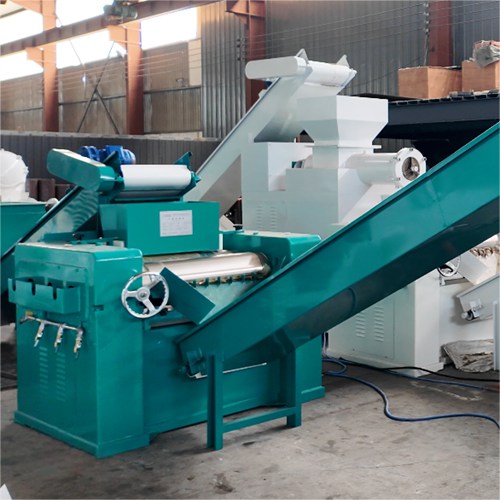

• Three-Roller Grinding Mill: Refines and homogenizes the mixture to achieve ultra-fine texture and smooth touch.

• Double-Layer Vacuum Plodder Machine: Extrudes the refined soap mass under continuous negative pressure.

• Electronic Roller Printing & Automatic Soap Stamping Cutter: Accurately prints patterns, logos, and cleanly cuts soap bars to accurate weights and shapes.

• Automated Conveyor Belts & Centralized Control Panel: Ensures seamless material transfer and smooth synchronized operation.

Superior Structural Density & Crack Prevention

A standout feature of this bar soap making machine line is its advanced double-layer vacuum plodder. By compacting the soap noodles within a high-vacuum chamber during extrusion, the machine thoroughly removes air bubbles, moisture pockets, and micro-voids from the soap base. This crucial step results in an exceptionally tight, solid internal structure. Consequently, the finished laundry and toilet soap bars boast high mechanical strength, uniform smooth surface finish, long-lasting durability during use, and complete resistance to cracking, swelling, or crumbling when exposed to water.

Versatile Production Capability

Whether your target market demands low-cost household laundry soap bars or delicate, fragrant toilet soaps, this adaptable bar soap making line meets all production requirements. By adjusting raw material proportions and modifying cutter mold dies, you can easily switch between various soap sizes, bar weights, brand logo stamps, and shapes. The machinery's precision craftsmanship ensures every finished bar exhibits uniform weight, clean edges, and vibrant color consistency.

Key Advantages & Technical Highlights

1. Direct Raw Material Processing: Flexible lye saponification system processes diverse vegetable oils and animal fats seamlessly.

2. High Production Efficiency: Continuous automated processing reduces labor intensity while maintaining continuous output of 100–300 kg per hour.

3. Flexible Soap Formulation: Handles a wide spectrum of fatty acid proportions (40%–80%) to serve both utility and premium cosmetic markets.

4. Enhanced Durability: Stainless steel contact surfaces prevent contamination and ensure long equipment service life under alkaline environments.

5. Easy Operation & Maintenance: Intuitive control interfaces allow quick setup, easy troubleshooting, and hassle-free daily cleaning routines.

Invest in this robust, all-in-one bar soap making machine from TJ Bright Machine to elevate your production output, minimize unit manufacturing costs, and manufacture top-tier soap products that win market competition. Contact our engineering team today for technical parameters, custom layouts, and a direct factory quotation!
