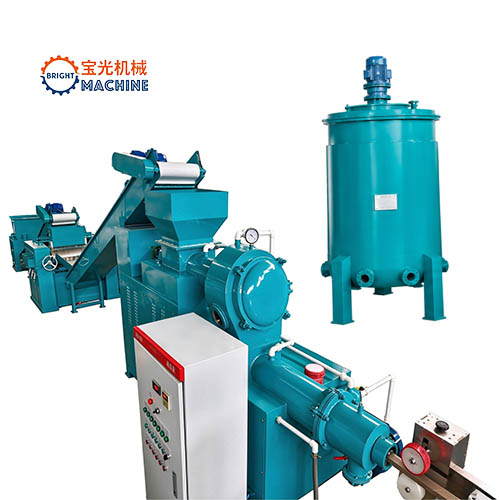

Automatic Bath Soap Making Machine and Laundry Soap Production Line

Introduction

The fully automatic bath soap making machine production line is a highly efficient and complete industrial solution designed for soap manufacturers worldwide. Specially engineered to process raw oils (such as palm oil, coconut oil, or tallow) and caustic soda (sodium hydroxide) through direct saponification, this state-of-the-art manufacturing plant yields premium toilet soaps, translucent bath soaps, and heavy-duty laundry soaps with outstanding smoothness and durability.

Complete Production Line Workflow & Equipment Breakdown

Our complete soap production plant integrates advanced mechanical engineering and modern automated controls to guarantee smooth workflow, low energy consumption, and high output capacity. The standard line incorporates the following precision components:

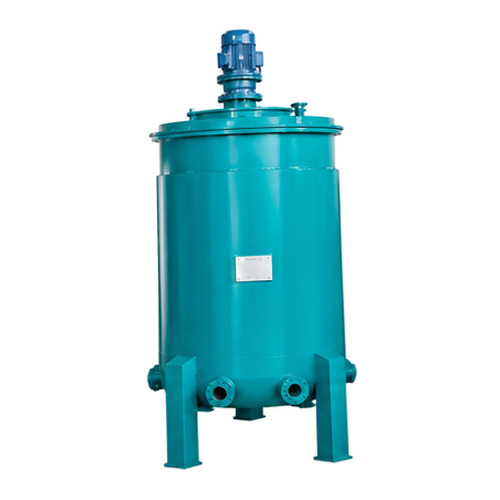

1. Saponification Pot (Saponification Reactor): The crucial initial phase where liquid oils, fats, and caustic soda are precisely heated, mixed, and reacted. This transforms raw liquid ingredients into uniform, high-grade base soap paste.

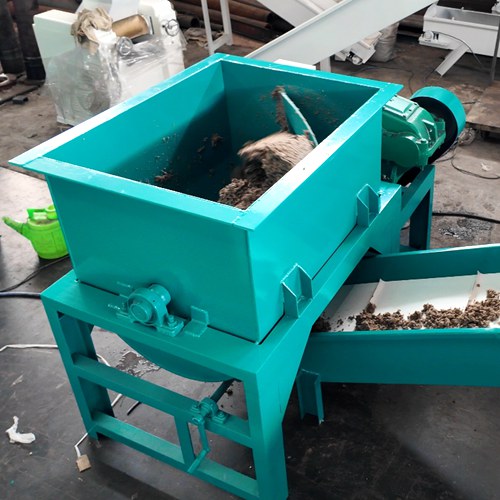

2. Industrial Soap Mixer: Blends soap noodles or base paste with colorants, fragrances, titanium dioxide, and active skincare additives to ensure smooth color, pleasant aroma, and thorough texture consistency.

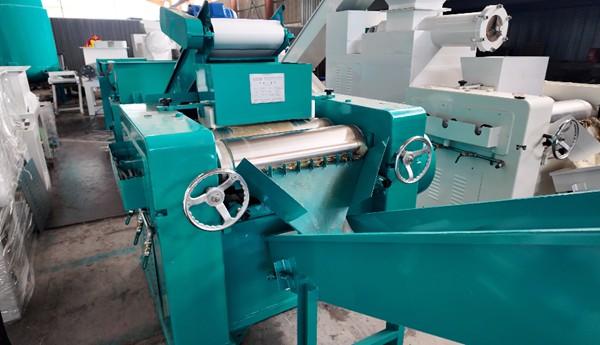

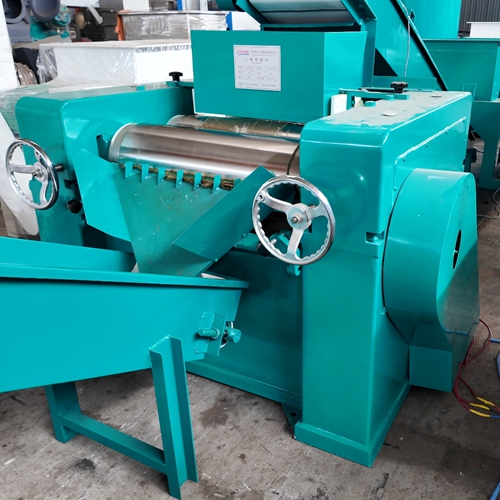

3. Three-Roll Mill Machine: Equips three high-precision alloy steel rollers rotating at differential speeds to refine, grind, and homogenize the soap mixture, effectively eliminating tiny lumps and enhancing bar smoothness.

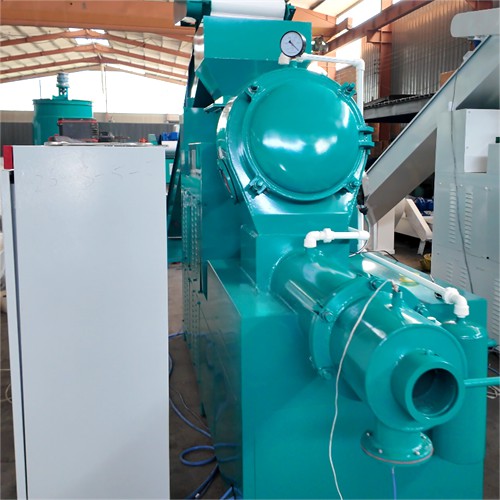

4. Vacuum Plodder (Extruder Machine): Combined with a powerful Vacuum Pump, this dual-stage plodder exhausts air bubbles from the soap mass under high vacuum conditions, producing dense, crack-free, continuous soap billets with exceptional compact structure.

5. Precision Cutter Machine: Automatically cuts the continuous extruded soap strip into precise, uniform block lengths ready for final pressing and logos.

6. Automatic Soap Stamper Machine: Features customizable metal molds to stamp brand logos, decorative patterns, and smooth rounded edges onto each soap bar with consistent precision.

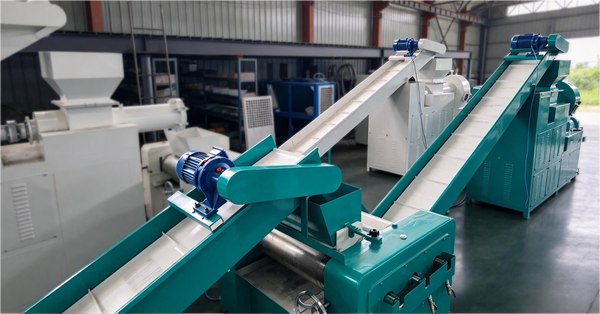

7. Heavy-Duty Conveyor Belts : Seamlessly link all processing stages from raw material grinding to final stamping, maximizing production automation while drastically reducing manual labor costs.

8. Industrial Refrigerator (Chiller Unit): Provides quick cooling to the plodder barrels and stamping molds, preventing stickiness, ensuring quick mold release, and maintaining flawless surface finish.

9. Centralized Power Distribution Box: A centralized, user-friendly electric control panel that monitors power output, temperature parameters, and motor speed across the entire line for safe and efficient operation.

Key Advantages & Technical Features

• Direct Oil-to-Soap Capability: Operates directly from basic oil and caustic soda raw materials, offering complete control over soap formulations and significantly lowering production costs compared to buying pre-made soap noodles.

• Dual Functionality: Versatile configuration easily switches between producing bath soaps, toilet soaps, hotel guest soaps, and solid laundry bar soaps by adjusting formulas and extrusion dies.

• High Density & Fine Surface Finish: The combination of triple-roll grinding and double-vacuum plodding guarantees bubble-free, smooth, and long-lasting soap bars that do not easily melt in water.

• Durable Construction & Easy Maintenance: Built with premium stainless steel contact parts to resist alkaline corrosion, lower maintenance needs, and meet strict hygiene standards.

Applications

Whether you are scaling up a traditional soap factory or establishing a modern personal care manufacturing facility, this advanced bath soap making machine system provides the perfect balance of yield, reliability, and precision. Elevate your soap production capabilities today with our trusted industrial machinery!
