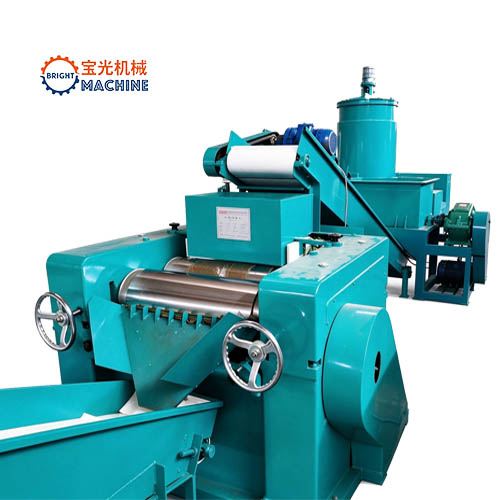

Industrial Continuous Saponification Plant for Semi-Automatic Soap Production Line

High-Performance Continuous Saponification Plant for Complete Bar Soap Manufacturing

Tianjin Bright Machinery Equipment Co., Ltd. (TJ Bright) delivers advanced engineering solutions for global soap manufacturers. Our Continuous Saponification Plant is a state-of-the-art semi-automatic soap saponification machine designed to turn natural vegetable oils, animal fats, and caustic soda into high-quality commercial bar soaps. Designed for medium-to-large scale daily chemical production, this versatile system combines primary chemical reaction, thermal conditioning, physical homogenizing, precise extrusion, and high-speed packaging into one seamless, heavy-duty production line.

Integrated Line Components & Workflow

Engineered for continuous reliability and minimal material loss, our complete semi-automatic soap manufacturing line integrates twelve essential sub-systems:

1. Saponification Tank (Reactor): Heavy-duty jacketed reaction vessel equipped with high-shear agitating paddles to guarantee fast, complete stoichiometric saponification of oils and alkali.

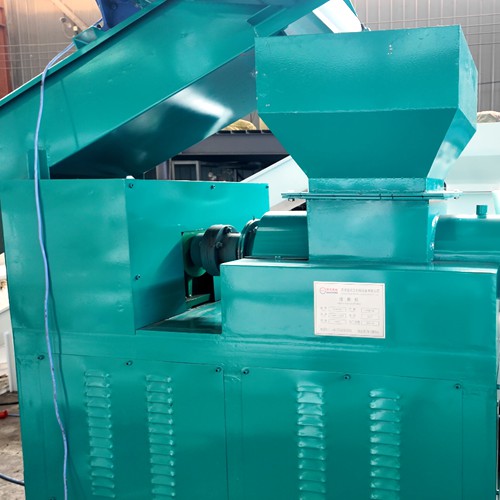

2. Soap Noodle Machine (Pelletizer): Efficiently solidifies and converts the liquid soap base into uniform soap noodles/pellets ready for downstream mixing.

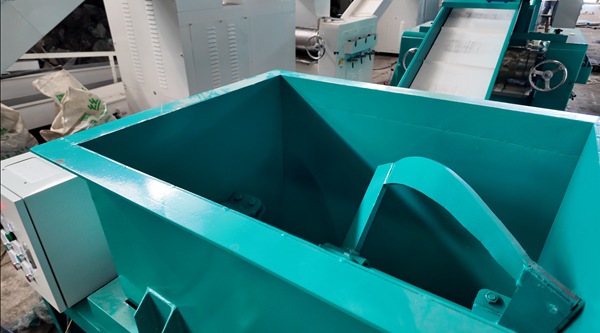

3. Soap Mixer (Amalgamator): Blends soap noodles with essential additives, fragrances, colorants, and fillers evenly under controlled speed.

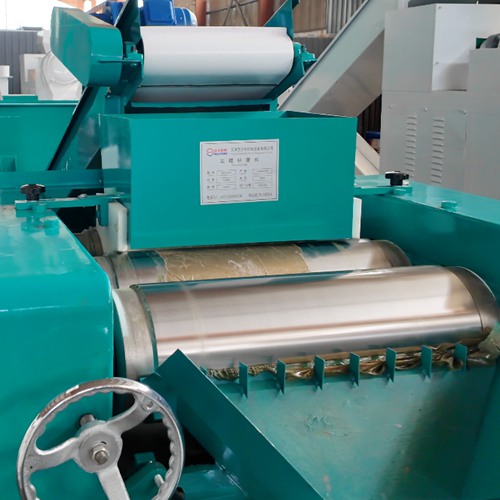

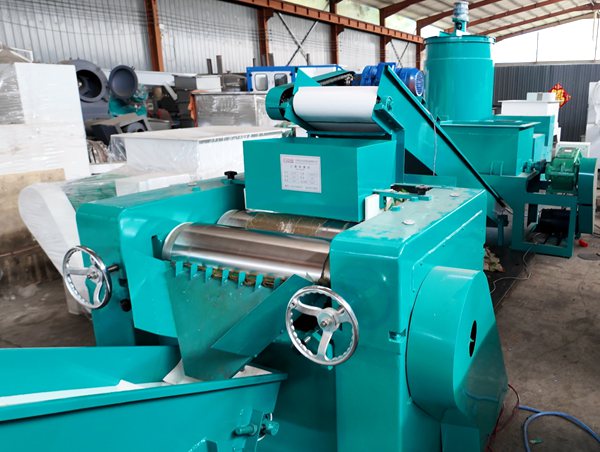

4. Three-Roll Mill: Precision-ground alloy steel rollers grind and refine the soap mass, eliminating air bubbles and delivering a dense, smooth finish.

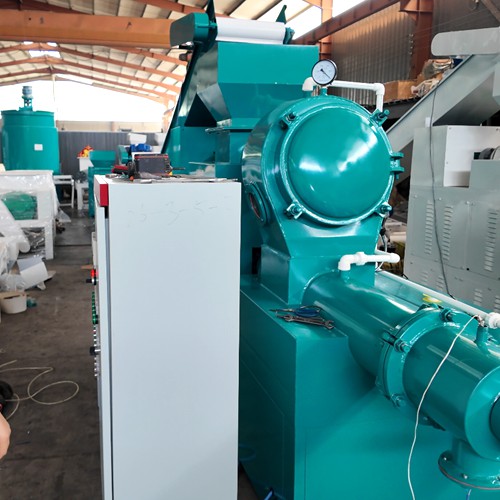

5. Vacuum Plodder (Extruder): Dual-stage vacuum extrusion system that compresses the refined soap base into solid, continuous soap bars without structural voids.

6. Cutting Machine: High-precision automated cutter that slices extruded continuous soap bars into accurate, customizable piece weights.

7. Stamping Machine (Stamper): Hydraulic or mechanical pressing unit that imprints crisp logos, brands, and clear shapes onto each individual soap block.

8. Freezer (for Stamper): Dedicated mold cooling freezer to prevent soap sticking, ensuring clean logo definition and flawless surface aesthetics.

9. Chiller (for Plodder): Industrial water cooling unit designed to regulate plodder barrel temperatures and prevent thermal deformation of soap during extrusion.

10. Automated Packaging Machine: High-speed flow wrapping or cartoning unit that protects finished soap bars for long-distance transport and retail display.

11. Belt Conveyors: Heavy-duty, food-grade conveyor belts connecting every station for smooth, continuous material transportation.

12. Electric Control Cabinet: Centralized electrical power and control hub equipped with safe, intuitive operational controls for complete process monitoring.

Key Engineering Features & B2B Advantages

• High Thermal Efficiency & Low Energy Costs: Built with optimized thermal jackets and dynamic mixing, our continuous saponification process reduces steam and power consumption compared to open-batch kettle systems.

• Consistent TFM & Superior Soap Quality: Precise dosing and three-roll refining guarantee excellent Total Fatty Matter (TFM) distribution, resulting in dense, smooth-lathering, long-lasting laundry and toilet soap bars.

• Robust Construction & Easy Maintenance: All raw material contact parts are built from premium corrosion-resistant stainless steel (SUS304/SUS316), extending machine lifespan and reducing downtime in harsh chemical environments.

• Flexible Semi-Automatic Operation: Striking the perfect balance between automation and operator flexibility, this line lowers capital expenditure while maintaining high-capacity throughput for growing enterprises.

Technical Specifications & Applications

Whether you are producing pure vegetable laundry soaps, translucent bath soaps, or custom hotel bar soaps, the TJ Bright Continuous Saponification Plant easily adapts to various raw material feeds—including palm oil, coconut oil, tallow, and fatty acids.

• Product Category: Soap Saponification Machine > Semi Automatic Soap Saponification Machine

• Primary Material Contact: Stainless Steel (SUS304 / SUS316)

• Target End-Products: Toilet Soap, Laundry Bar Soap, Hotel Soap, Medicated Soap

• Cooling Method: Industrial Water Chiller(for plodder) + Dedicated Freezer(for stamper)

• Control Interface: Centralized Electric Control Cabinet (Button / Panel)

Upgrade Your Soap Factory with TJ Bright

Increase your output, standardize product quality, and maximize operational profitability today. Contact the TJ Bright engineering team to request a customized plant layout, capacity configuration, or instant commercial quotation.
